The charts available per Store are Appointment Counts, Customer Pay Labour Sales, Recycles, and Repair Order Counts.
To view the available charts:
Click the Report Group drop down and select by store.
Click the Data Source Name drop down and select one of the following:
1. Appointment Count by Appointment Date (angular or linear gauge)
Use this chart to review the total amount of appointments for a period of time across a group, store or both by selecting the drop downs for Group and/or Store.
To view individual employee appointment counts, select the Employee drop down.
Appointment Count by Appointment Date is best viewed with angular or linear gauge charts. To review how-to select the settings for Ranges and Gauges, click here.
See images below:

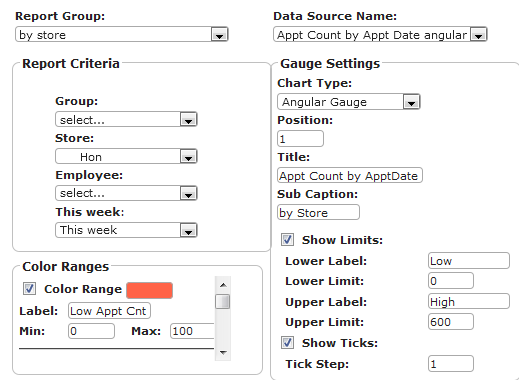

Figure 1: Adding an angular gauge chart per store for Appointment Count by Appointment Date for last week. To view a linear gauge, select it from the Data Source Name drop down and Chart Type drop down.

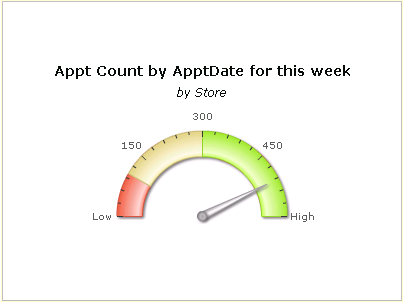

Figure 2: In the image above, the settings render a chart similar to below:
2. Month over Month Charts
Use Month over Month Charts to view a store's data (over the past 1, 2, or 3 years) for Appointment Counts, Labour Sales, Recycles or RO Count CP.
Month over Month Charts are best viewed with Multi-series Area, Line or Multi-series Bar.
See images below:

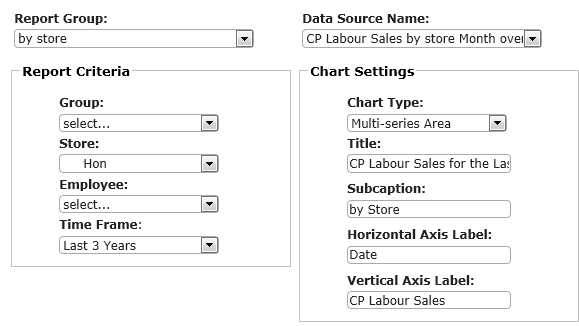

Figure 3: Adding CP Labour Sales for the Last 3 Years Month over Month Multi-series Area chart . To view Line or Multi-series Bar, select it from the Chart Type drop down.

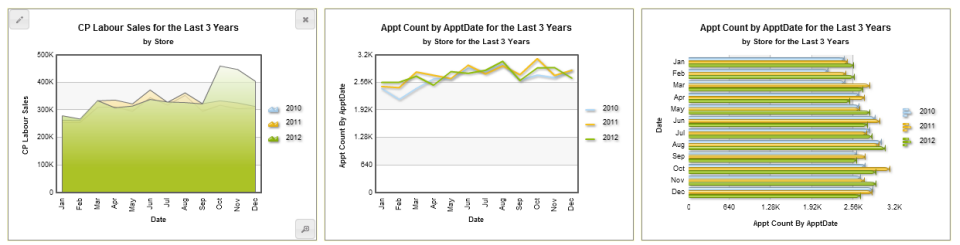

Figure 4: In the image above, the settings render charts similar to below. Charts left to right: Multi-series Area, Line, Multi-series Bar
3. RO Count
Use RO Counts to view a stores data for Total Counts and Customer Pay.
RO Count Charts are best viewed with Area 2D, Columns 2D or Line.
See images below:

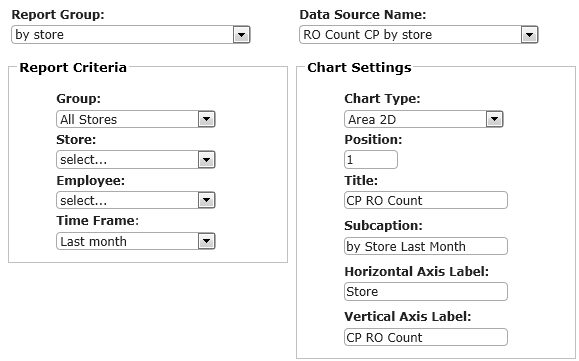

Figure 5: Adding RO Count by Store for the Last Month Area 2D chart . To view Columns 2D or Line, select it from the Chart Type drop down.

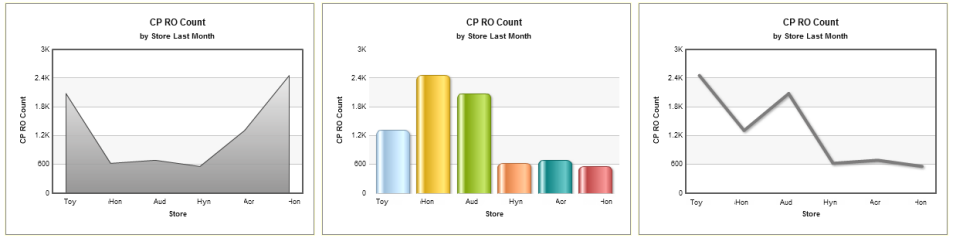

Figure 6: In the image above, the settings render charts similar to below. Charts left to right: Area 2D, Columns 2D, Line
